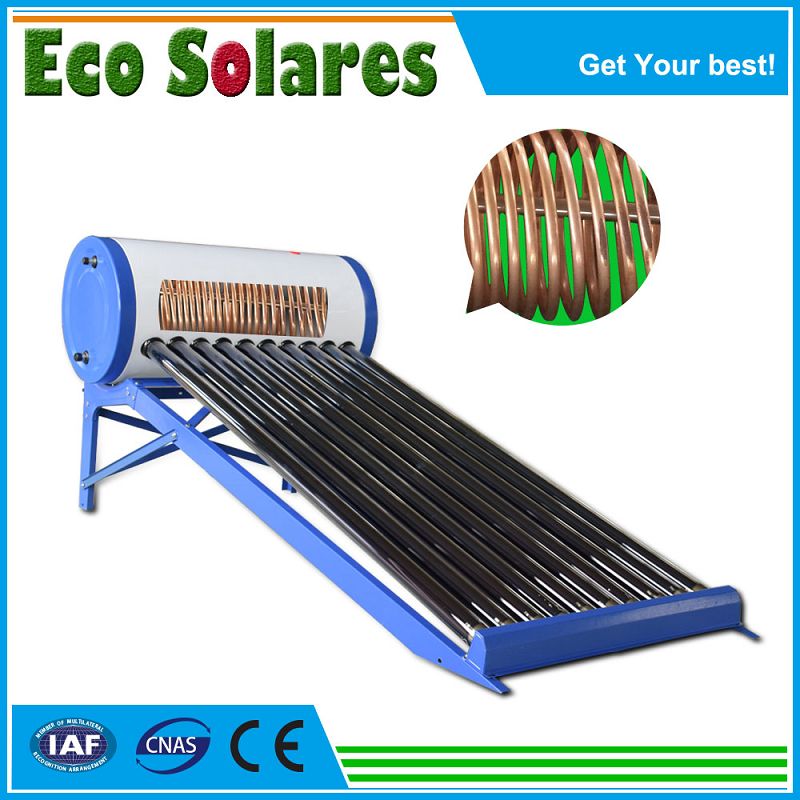

Pre-heated solar water heater with copper coil inside |
|
|
System capacity |
100 liters-500 liters |
|
Outer tank |
SUS201-BA/SUS304-2B/SUS304 Hairline Color coated steel <0.30mm-0.40mm> |
|
Inner tank |
Food grade SUS304-2B stainless steel <0.30mm-0.50mm> |
|
Copper Coil |
12MM Diameter,0.8MM thickness,15--30M Length |
|
Insulation |
40KG/CBM High density polyurthane foam<thickness 50/55/60mm> |
|
Frame/bracket |
Galvanized steel with high quality spray painting <1.2 mm- 1.5mm> |
|
Solar Vacuum Tube |
Specification: 47x1500mm, 47*1800mm,58x1800mm,58*2100mm,70*2100mm |
|
Thickness 1.6mm borosilicate 3.3 glass |
|
|
AL-N-AL coating, absorption rate 0.93-0.96 (AM 1.5) |
|
|
SS-CU-ALN/ALN coating, absorption rate ≥0.96 (AM 1.5) |
|
|
Vacuum tightness P< 0.005Pa |
|
|
Idle sunning property parameter Y=260-300 m².°c/KW |
|
|
Tube Holder |
White/Black Color, adjustable or normal one, basing on your choice |
|
Welding |
Auto pulse welding or Auto argon arc welding |
|
Holes design of tank |
Air vent, overflow, inlet, output, sensor and electric heater (or OEM basing on customer request) |
|
Inlet/Output Pipe |
3/4 inch,10/20/30CM Length |
|
Air Vent Pipe |
1/2 inch, 10/20/30CM Length |
|
Magnesium Rod Hole |
1/2 inch,3/4 inch, OEM Basing on customer request |
|
Electrical Backup Hole |
47MM Diameter |
|
Optional accessories |
Auxiliary electric heater 1.5/2.0/2.5KW |
|
Assistant tank 3/5/8/10/12/40/50 liters |
|
|
Intelligent controller |
|
|
Magnesium rod |
|
Features:
1) Reliable and efficient twin-glass solar tubes;
2) Copper heat pipes for rapid heat transfer;
3) Easy plug-in installation;
4) Free maintenance;
5) Suitable for mains pressure water (up to 1.0 bar);
6) Corrosion resistant silver brazed copper header;
7) Aluminum frame;
8) Stable solar conversion during the day;
9) High purity copper for the heat exchanger coil
Trade Items Of Product
|
Payment |
T/T,L/C,West Union |
|
MOQ |
1 Set |
|
Port |
Shanghai/Ningbo |
|
Package |
Standard carton for whole container products Wooden Box Package for sample order |
|
Delivery |
7 days after deposit received. |
|
Supply Ability |
100000 Sets / Year |
Our Service
1.) Inquiry Response: Your Inquiry will be replied within 24 Hours
2.) Sample Order:3--7 Days for sample order
3.)Can do OEM Basing on your detailed Request
RAQ
1- What is your Delivery Time?
LCL order/Sample order: 3--7days.
Full container order:7-10days.
2- What is your Guarantee Time?
3 years.
3- Can you accept OEM ?
YES, will do OEM Basing on all your detailed requirements.
4- What is your Payment Term?
We accept T/T,Escrow & West Union
5-What is your MOQ?
1 set
6-What is your Packing?
LCL order/Sample order in wooden box Package
Full container order in Standard quality export carton with PE Foam Protection
7-What is your FOB Port?
We accept FOB Shanghai & Ningbo
8.-What is your Monthly Production Capacity?
1000 sets
9-What is your Shipping Term?
By Sea/Air/Rail
