Product Description:



1. Compact flat plate solar energy product
2. CE certified
3. Tinox blue titanium absorber or black chrome absorber

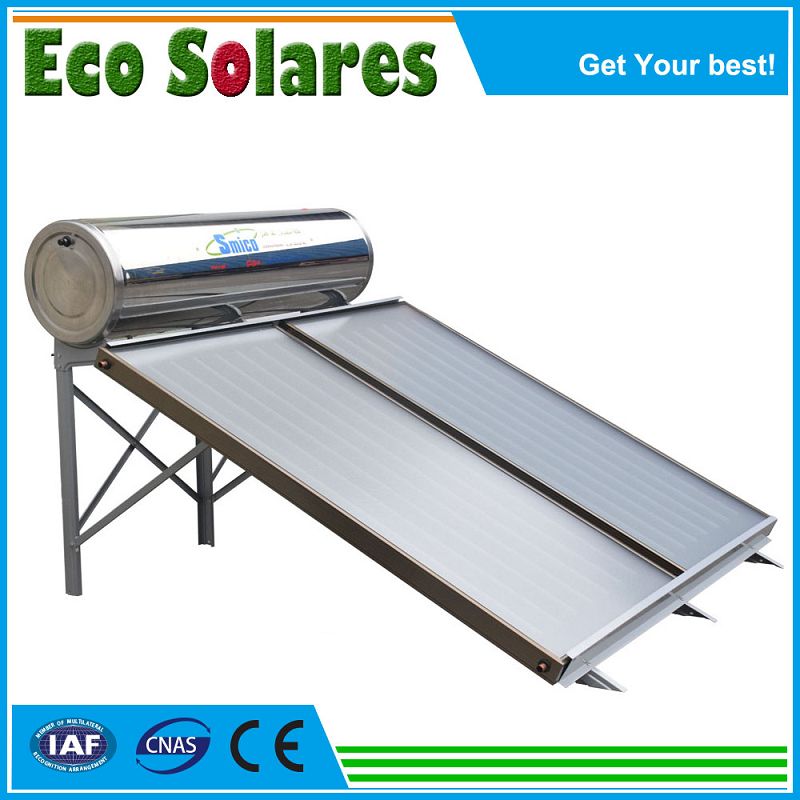

Compact flat plate solar energy product  includes flat plate solar collector and pressurized water tank. It's a compact system.


Specification of flat plate solar collector :

1. Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.

2. Tinox blue titanium or black chrome coating have very high absoption rate to ensure the high efficiency.

3. Since there are no adhesive or mechanical joints, nothing will deteriorate with age and high temperature.

4. Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.


Specification of pressurized water tank :

1. Inner tank: SUS 304-2B food grade stainless steel

2. Outer tank: Color steel or SUS 201 stainless steel

3. Capacity:100L， 150L, 200L, 250L, 300L ,400L,500L

4. Testing pressure: 9 bar

5. Heat preservation: 72 hrs





Solar Water Heater Tank part
Material Details
Inner tank material	SUS304-2B stainless steel with 0.31-0.5mm thickness
Outer tank material	color steel with 0.35mm thickness or stainless steel with 0.31mm
Hail resistance	25mm
Insulation material	50-60mm foaming polyurethane
Capacity	100L--500L
Installation angle	20,38,40,45
Frame material	aluminium alloy/Galvanized Steel
Reflector material	aluminium or stainless steel
Optional electrical heater	1.5~3.0KW

Flat panel solar water heater model	XS-FP-SP-100
Copper Riser Tubes Spec. & Qty(mm)	Dia10 * 0.50 * 1886*8pcs copper
Copper Header Tubes Spec. & Qty(mm)	Dia 22 * δ0.6 * 1060
Copper Absorber Fin Spec. & Qty(mm)	Bluetec 125 * δ0.15 ,8pcs, all cooper  fin, ultrasonic welding
Spectrum Absorber Coating	Blue sputtering
Optical Performance	absorption ~95%,emission ~5%
Insulation Material	50 mm fiber glass
Frame	2.0mm thickness aluminum alloy frame
Glass	Pattern tempered glass,transmission >92%.3.2mm
Gross Area	2.00m2
Aperture Area	1.85m2
Heat Transfer Fluid	portable water and other heat transfer  fluid
Backing Sheet	0.5mm embossed aluminuml
Net Weight for solar collector (kg)	35
Gross Weight for solar collector (kg)	40
Working Pressure	0.6Mpa
Conversion Factor	0.737
Heat transfer coefficient a1	4.597W/(m2k)
Temperature dependent heat transfer    coefficient a2	0.003W/(m2k)
Testing Pressure	1.2Mpa for 5 minutes
Flat plate solar collector size	2000x1000x80mm
Tank capacity	100L--500L



Trade Items Of Product

Payment	T/T,L/C,West Union
MOQ	1 Set
Port	Shanghai/Ningbo
Package	Standard carton for whole container products Wooden Box Package for sample order
Delivery	7 days after deposit received.
Supply Ability	100000  Sets / Year
